ACCORR 90
ACCORR-90

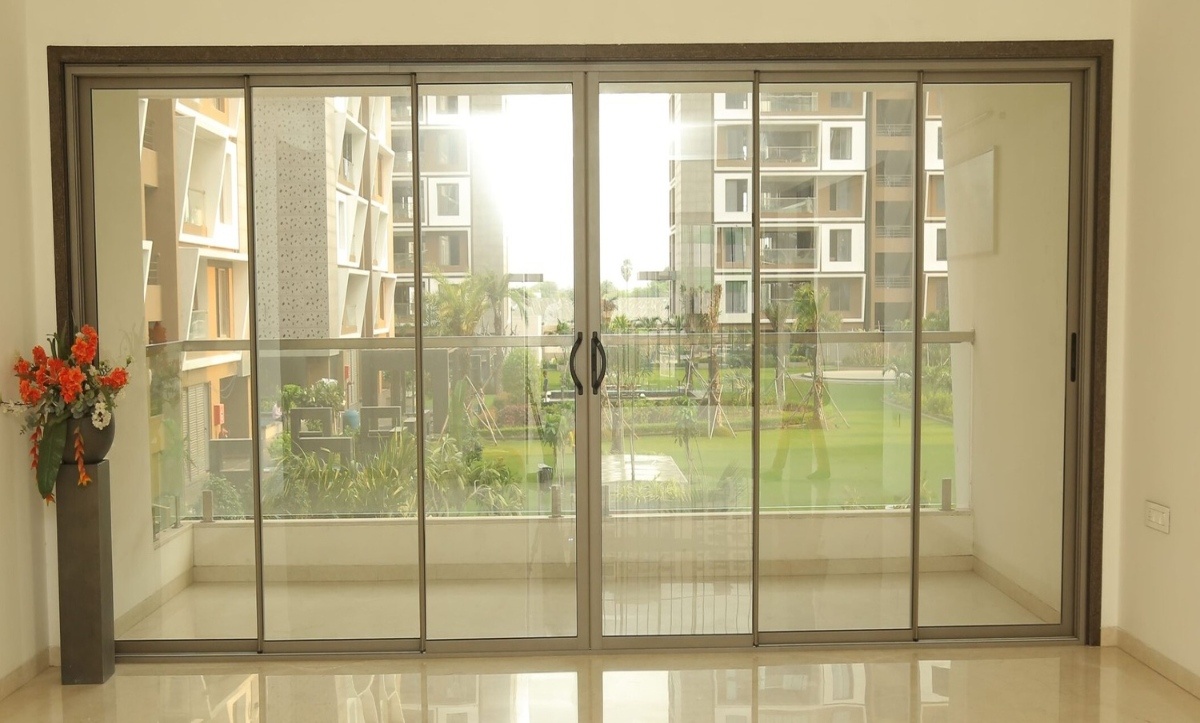

Accorr-90 profile is Accorr sliding system with slim Profile. Created by the modern Architectural Trees, these systems are budgeted for the builder lobby. The Accorr-90 has a minimal Design which minimizes the visible Aluminium frame. Wide range of Typologies, very thin Interlocking profile of just 25mm!
ADVANTAGES
- Minimum visible height.
- Frame profile available for 45° Assembling.
- Conceal lock system
- Sash profile Available for – 90 Assembling.
- Interlock profile of 25 mm.
- SGU & DGU Glass Glazing Method.
- Large Variety of Typologies .
TECHNICAL INFORMATION
| PARTICULAR | SPECIFICATION |
|---|---|
| Frame-2 Track Size | 70 mm x 40 mm |
| Frame-3 Track Size | 110 mm x 40 mm |
| Small Interlock Size | 25 mm x 40 mm |
| Big Interlock Size | 25 mm x 65 mm | Maximum Panel Size | 1.52 mtr x 2 mtr |
| Center Profile Meeting width | 110 mm |
| Bottom Rail Size | 11 mm x 12 mm |
| Minimum Visible Height of Construction | 86 mm |
| Glazing - Glass Thickness | 5 mm TO 20 mm |
Experts in Delivering Tailored Engineering Solutions
and Comprehensive After-Sales Support Services.
TYPOLOGY
