ACCORR 40
ACCORR 40

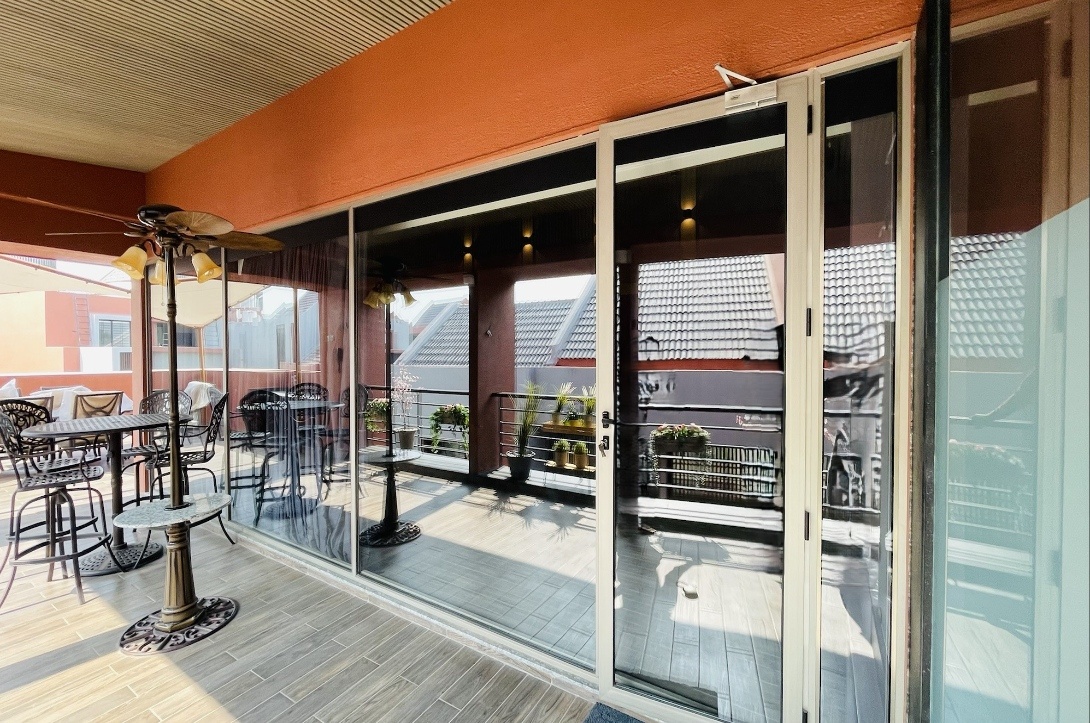

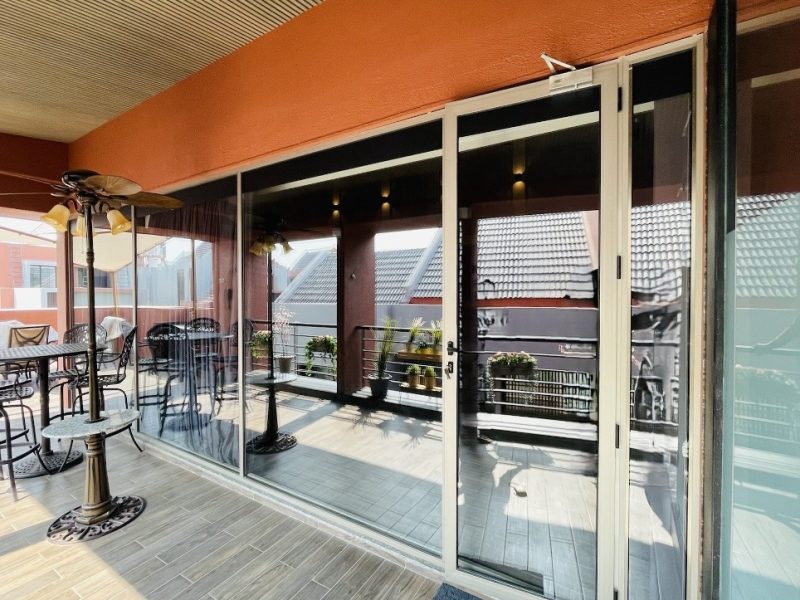

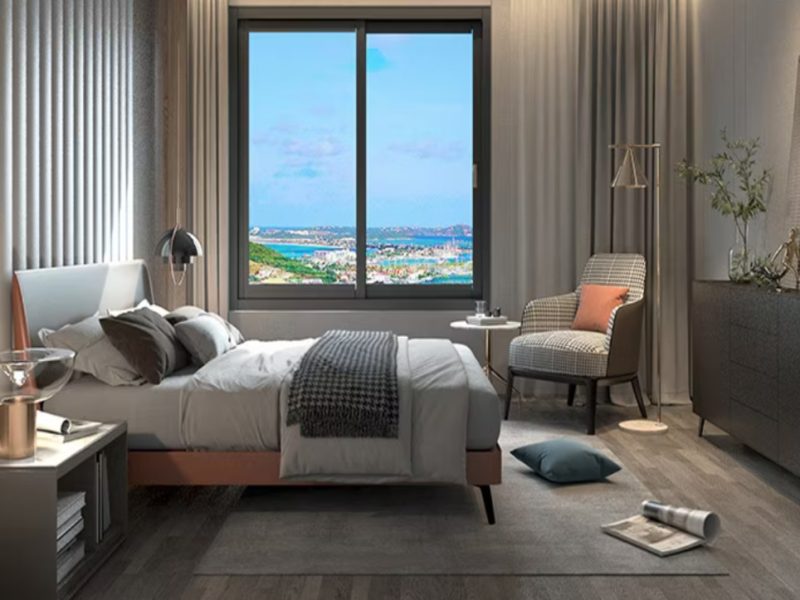

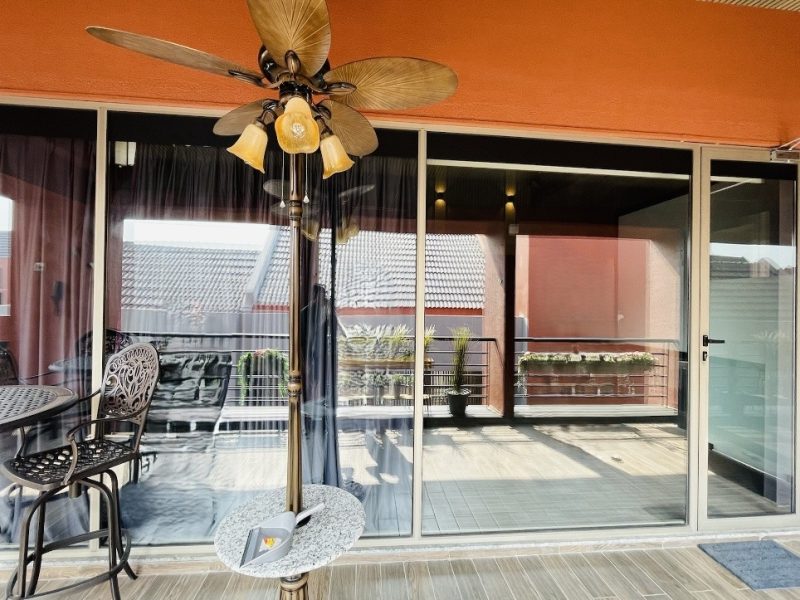

ACCORR 40 provides an economical choice for those seeking reliable performance. ACCORR 40 is a Casement system for fixed panels, and inward-outward & top hung openings of windows and doors with provide maximum ventilation.
ADVANTAGES
- Options for single/double shutter
- Options for single/double glass.
- Two-point locking is available
- Profile compatible for Euro groove Hardware.
- Hairline corner joints possible
- Proper concealed tower bolt for two-point locking.
TECHNICAL INFORMATION
| PARTICULAR | SPECIFICATION |
|---|---|
| Small Frame | 40 mm X39 mm |
| Big Frame | 68 mm X39 mm |
| Visible Height of Construction | 72 mm |
| Window Panel Size | 0.9 x 1.5 mtr. |
| Door Panel Size | 0.9 x 2.1 mtr. |
| Window Shutter | 40 mm x 53 mm |
| Door Shutter | 40 mm x 70 mm |
| Glass Glazing Thickness SGU | 5 MM TO 12 MM |
| >Glass Glazing Thickness DGU | 20 mm |
Experts in Delivering Tailored Engineering Solutions
and Comprehensive After-Sales Support Services.
TYPOLOGY
