Facade Systems

CURTAIN WALL

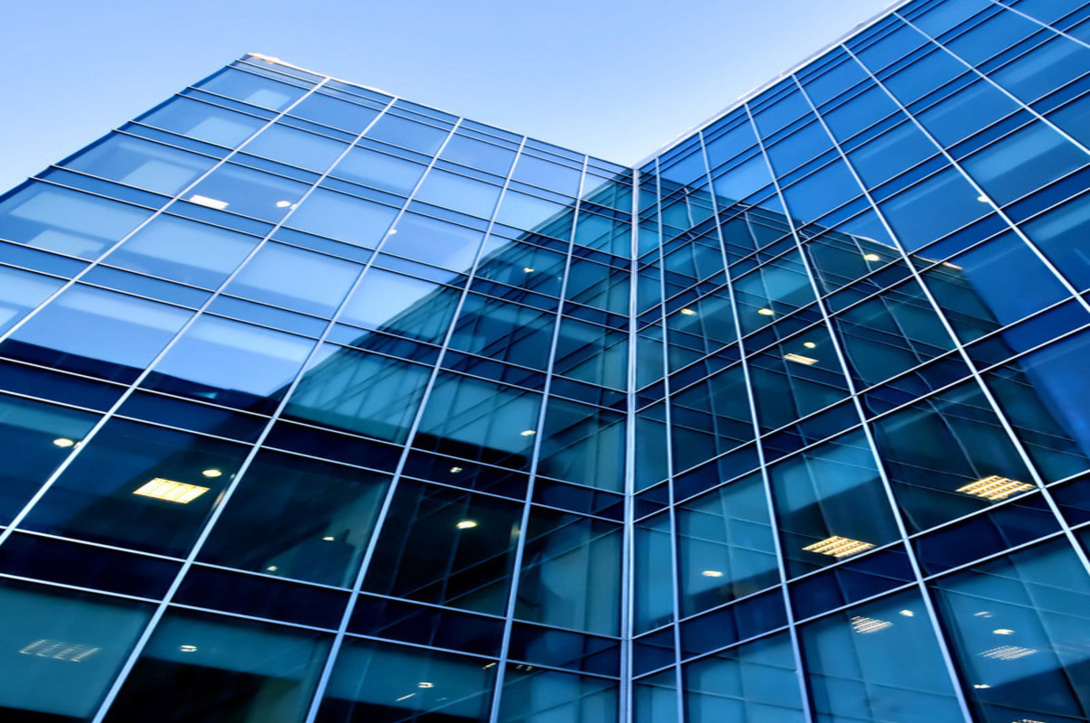

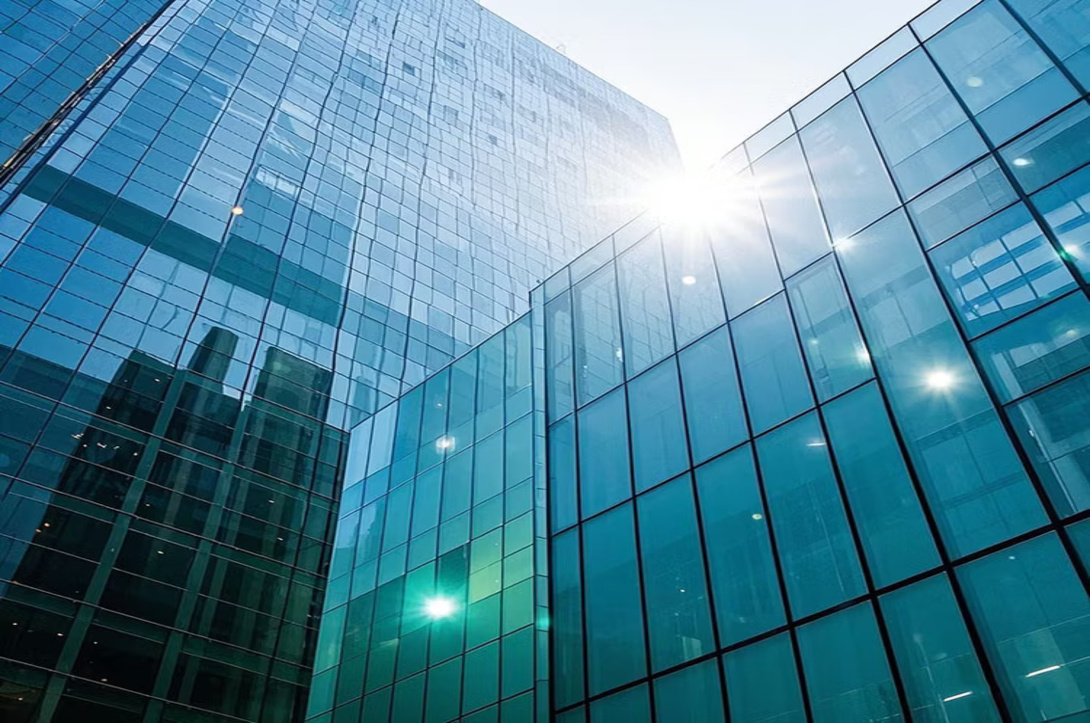

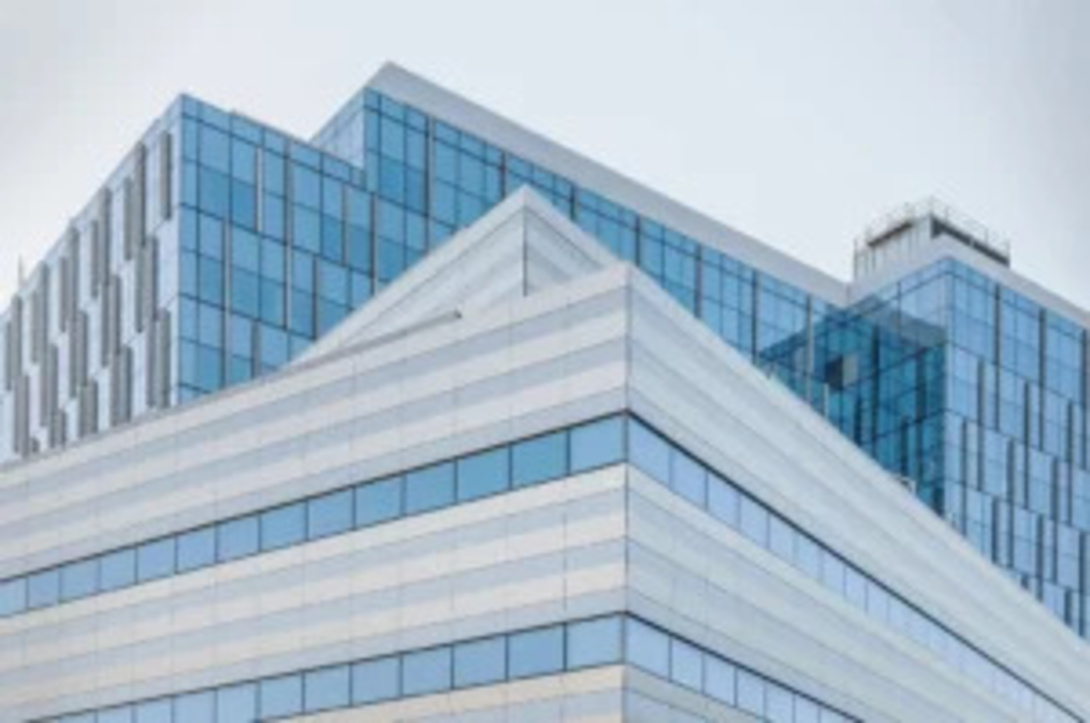

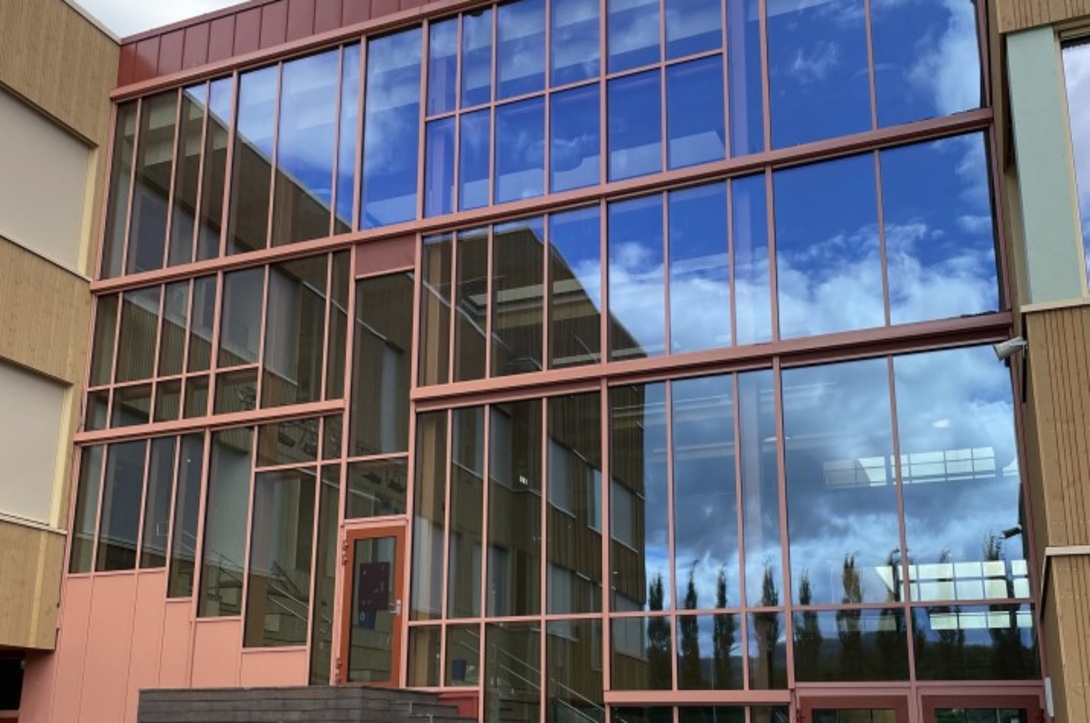

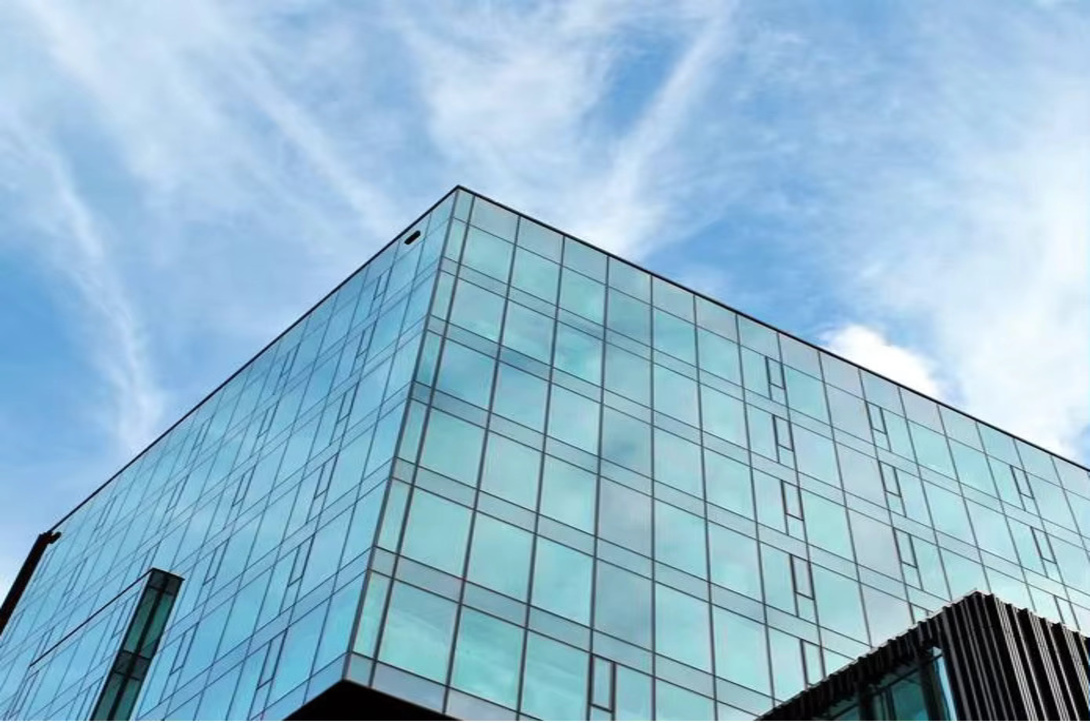

  • Curtain and window wall systems are used as building envelopes and assure maximum daylight intake within the interior space, creating a safe and comfortable environment for the building’s occupants. Moreover, aluminium curtain walls are a popular choice because of their high aesthetic value and their limitless possibilities in architectural applications.
curtainwall_photo2

ACCORR curtain wall systems is a façade and roof system that offers unlimited design freedom and allows maximum transparency. Our aluminium curtain wall systems are well equipped to deal with the requirements which enhance the living and working environment of a building.

A curtain wall system is an outer covering of a building in which the outer walls are non-structural, utilized only to keep the weather out and the occupants in. Since the curtain wall is non-structural, it can be made of lightweight materials, thereby reducing construction costs.

TECHNICAL CHARACTERISTICS

  • Exterior visible width 50mm
  • TYPE OF INSTALLATION Standard
  • Performance WIND LOAD RESISTANCE Design load ± 2 KN/m 1
  • Mullion depth 12up to 234mm
  • EXTERIOR AESTHETICS LINEAR Yes
  • SOUND REDUCTION 32,42,47
  • Transom depth 12up to 234mm
  • OUTER FRAME MAX INERTIA 1300
  • TYPES OF TOPOLOGY Fixed, Projected, Parallel Projected
  • TYPE OF HOLDING GLAZING Pressure plate or Structural silicon
  • TRANSOMS MAX INERTIA 1300
  • MAXIMUM WEIGHT 180 Kg

Advantages

  • Cost & time and material saving of construction time
  • Constantly increasing production quality, with the glazing panel in the site facilities
  • Guaranteed performance quality in terms of air- water permeability, wind pressure as well as the Uf.
  • Same profile as mullion and transverse can be applied
  • High Energy Efficiency
  • Increased Comfort level
  • Increased of security level
  • Increased of sound insulation level
  • Maximum functionality
  • Modem Appearance
  • Ability to design custom solutions tailor made to the building
  • Enhancement of Natural Light
  • Guaranteed performance quality in terms of air- water permeability, wind pressure as well as the Uf.
  • Increased static and functionality in extreme weather conditions
  • Flexibility in construction
  • Only 50 mm visible width of mullions and transoms.
  • Very high thermal insulation up to Uf=1,0 W/m2K.
  • Large variety of mullions with the option of steel reinforcement in case of high wind loads.
  • Various covers for external surfaces of high aesthetic value.
  • Structural version available without aluminium covers, using the same mullions and transoms.
  • INSTALLATION

  • MAINTENANCE

  • Spider Fittings are Designed for use in vertical applications
  • Spider Fittings are Intended for interior applications
  • Glass must be drilled for installation with Spider Fittings
  • Regular cleaning will help to maintain the Finish
  • Please contact our project management team for assistance with the details of your specific project needs
  • For Care & Maintenance, please refer to the Glass Hardware Care & Maintenance document found on our website
