ACCORR 3200 SP

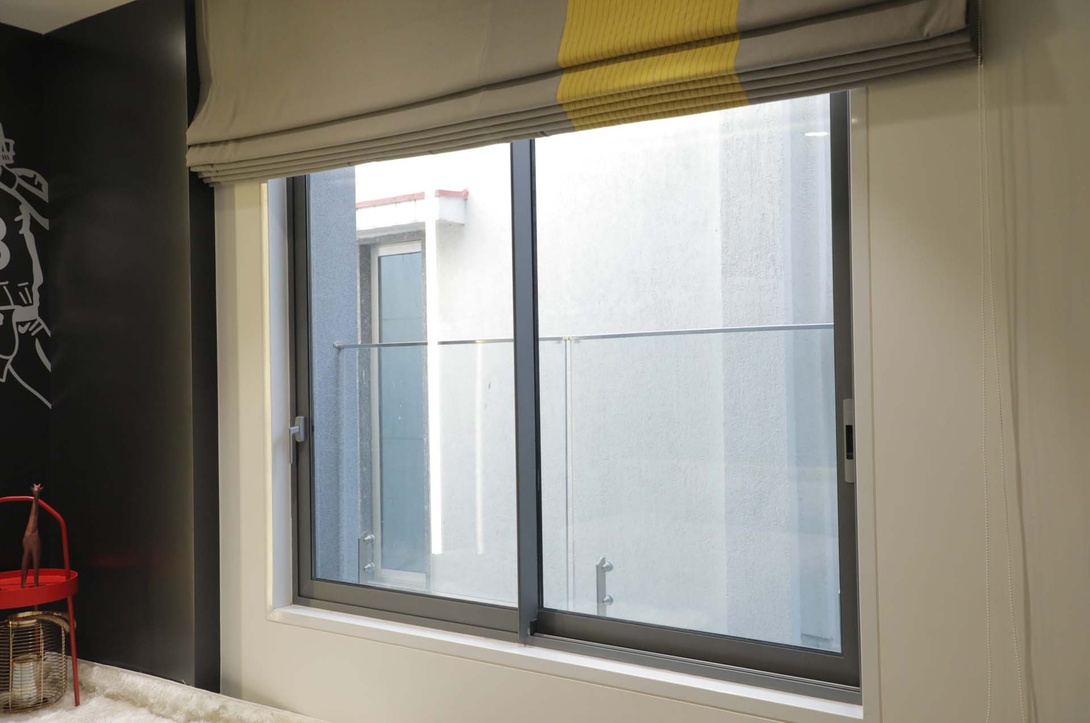

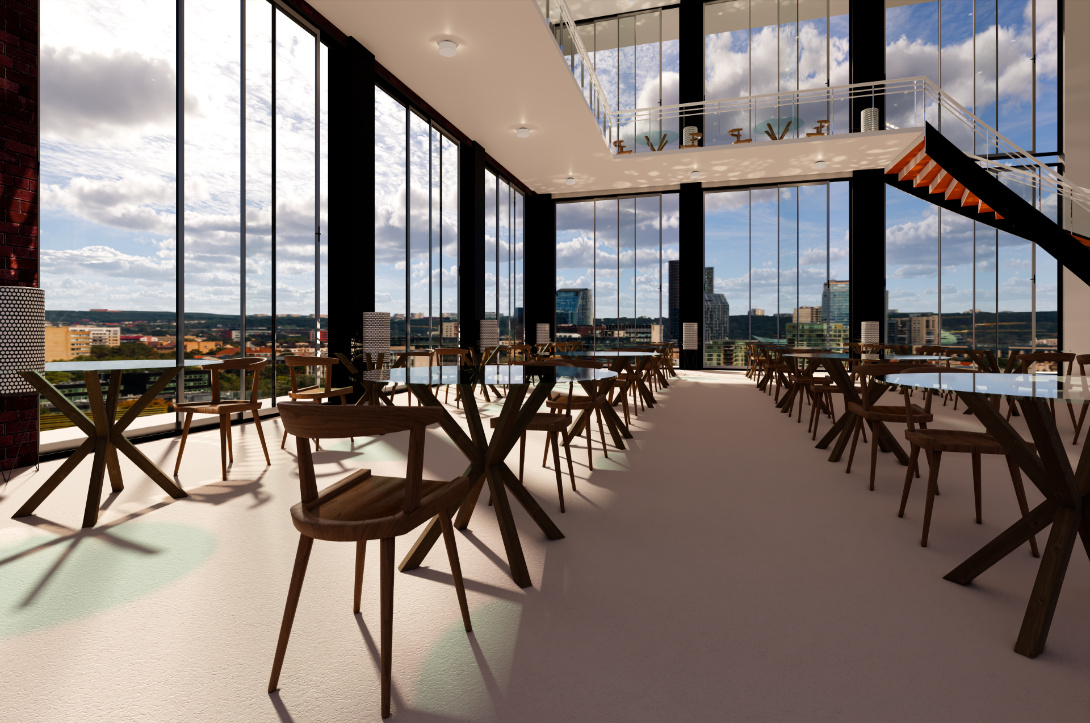

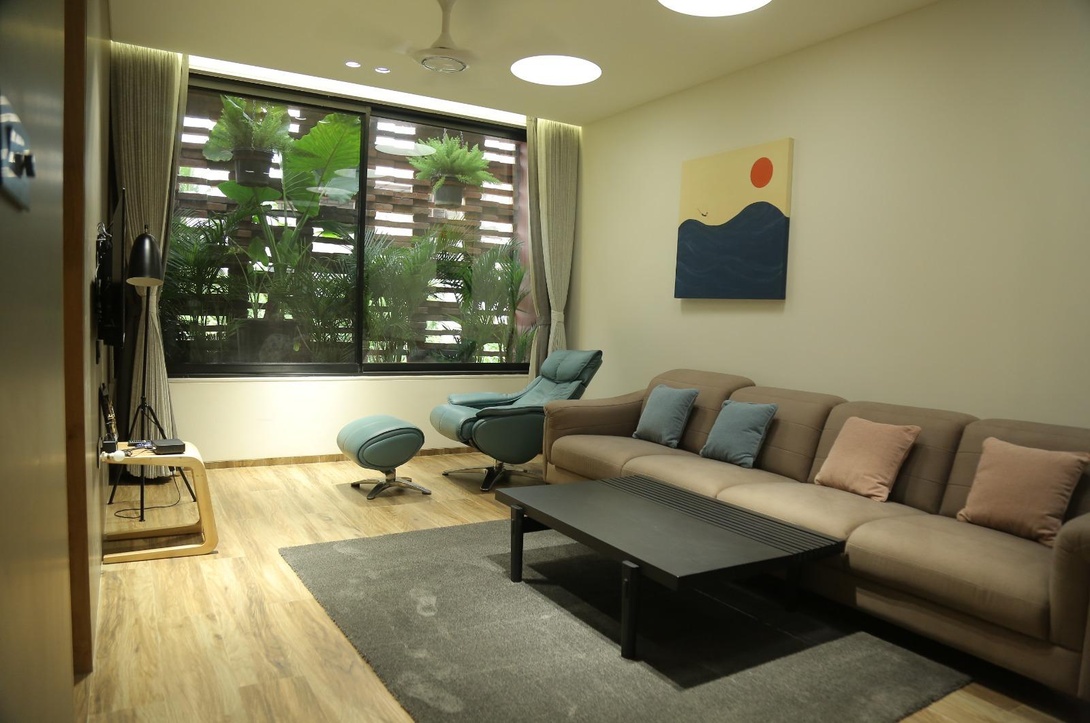

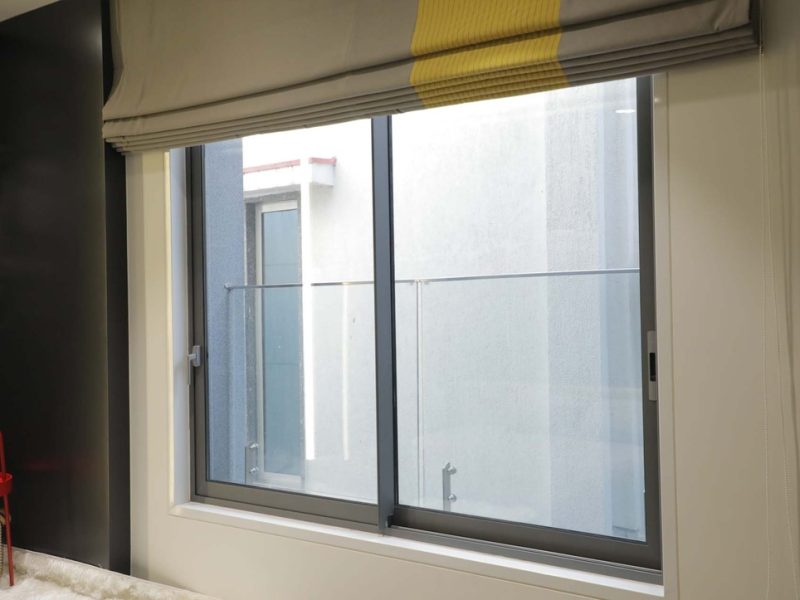

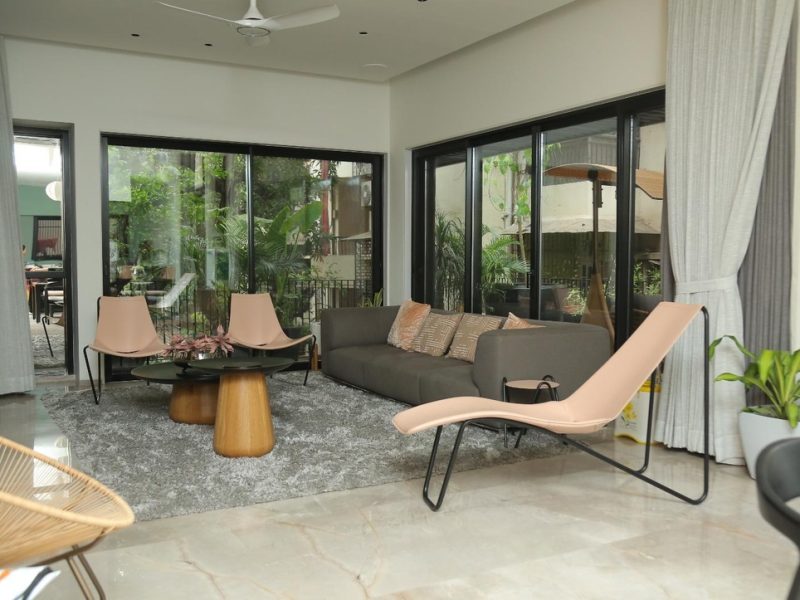

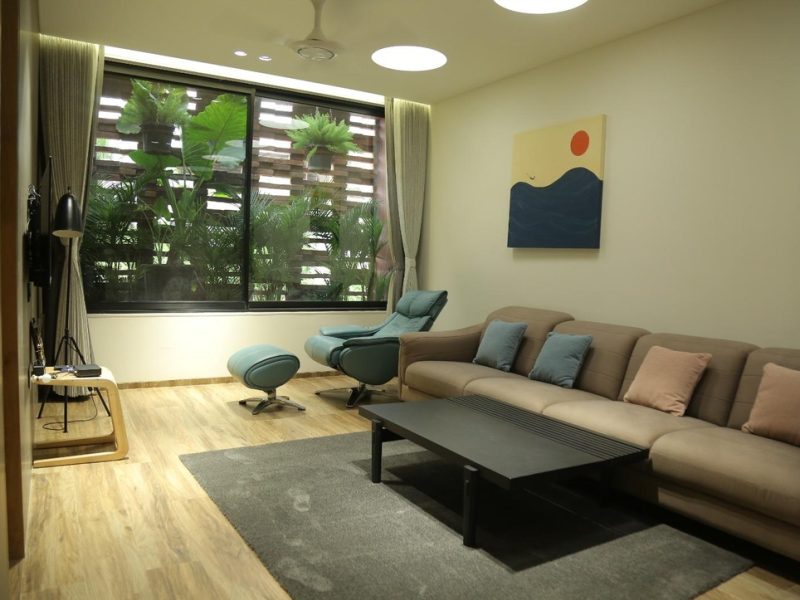

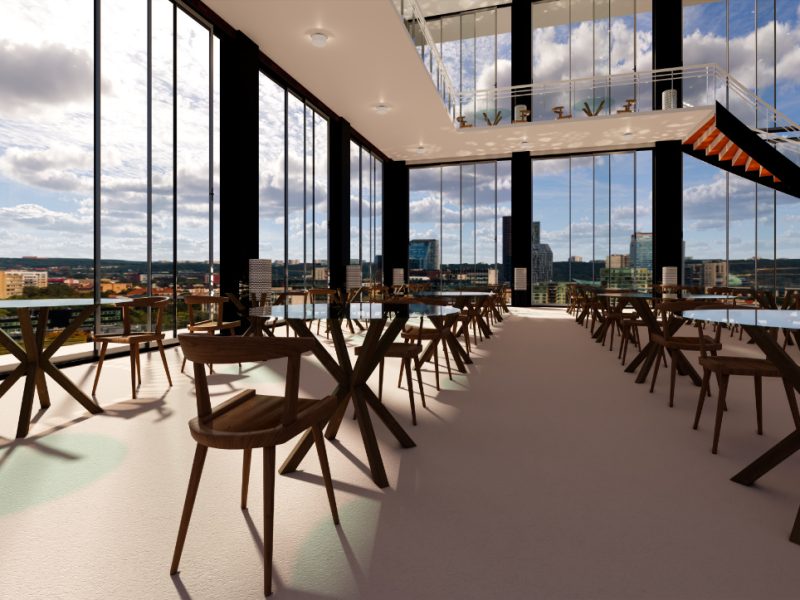

Accorr- 3200 SP high-performance Slim-Line System an excellent match for any modern project .It meets the modern Architectural trends and the Requirements for especially high performances . ACCORR 3200 SP provides limitless design flexibility with their numerous minimalist styles.
ADVANTAGES
- Maximum Glass Thickness up to 21 mm.
- Special Interlocking profile
- Sash and frame Profiles are Available for 45° Assembling.
- Minimum visible Interlock width of only 28 mm
- Basic Depth of the Sash is 32 mm.
- Range of Typologies Available in this system.
- 2/3 Track Frame.
TECHNICAL INFORMATION
| PARTICULAR | SPECIFICATION |
|---|---|
| Frame -2 Track Size | 72 mm x 45 mm |
| Frame -3 Track Size | 113 mm x 45 mm |
| Small Interlock Size | 28 mm x 39 mm |
| Big Interlock Size | 28 mm x 81 mm |
| Visible Height of Construction | 102 mm |
| Maximum Panel Size | 1.8 mtr. X 3.2 mtr. |
| Center Meeting Profile Width | 136 mm |
| SS & Aluminium Rail Size | 5 mm X 13 mm |
| Glazing Glass Thickness | 5 mm to 21 mm |
Experts in Delivering Tailored Engineering Solutions and Comprehensive After-Sales Support Services.
TYPOLOGY
